Frame set
frame

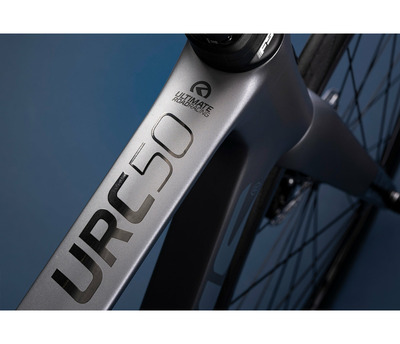

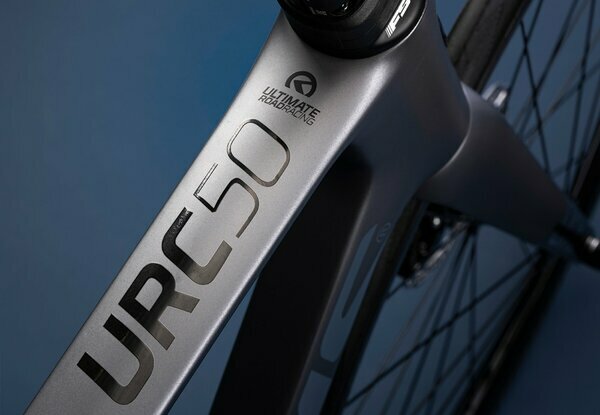

KELLYS Carbon Aero Pro Disc / Power Core, 1.5" tapered HT, ACR-System - aerodynamic internal cable routing, flat mount disc brake / 12 mm thru axle
fork
KELLYS Carbon Disc, 1.5" tapered steerer / flat mount disc brake / 12 mm thru axle
frame size
S / M / L
Drive
crankset
SHIMANO 105 R7000 Hollowtech II (52x36T) - length 172.5 mm (S - M), 175 mm (L)
rear derailleur
SHIMANO 105 R7000 (direct mount)
front derailleur
SHIMANO 105 R7000 (brazed-on mount)
shifters
SHIMANO 105 ST-RS505 Dual Control
speed
22
cassette sprocket
SHIMANO CS-R7000-11 (11-32T)
chain
SHIMANO CN-HG601-11
b.b.parts
SHIMANO Press-Fit BB71-41B
Brakes
brakes
SHIMANO 105 R7070 Hydraulic Disc

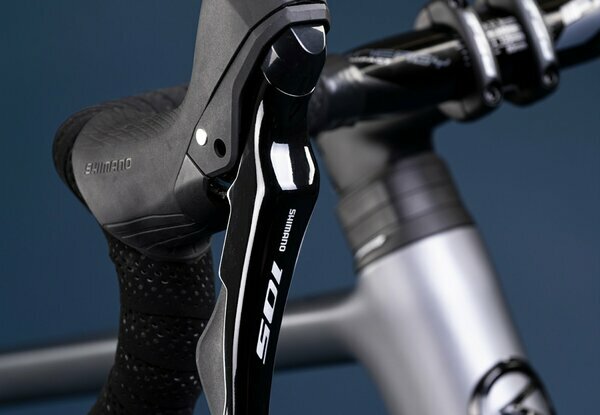

brake levers

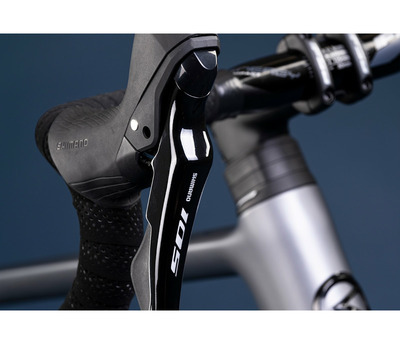

SHIMANO 105 ST-R7020 Dual Control
brake rotors
160 mm front / 160 mm rear
Wheels
wheel set
FULCRUM Racing 800 DB Disc Center Lock (12x100 mm / 12x142 mm)
tyres
SCHWALBE One 25-622 (700x25C) RaceGuard, ADDIX
thru axle
12x118 mm front / 12x171 mm rear
Cockpit
head parts
FSA 1.5" ACR integrated
stem
FSA NS, ACR (Aerodynamic Cable Routing) - diam 28.6 mm / bar bore 31.8 mm / 84° / length 80 mm (S), 90 mm (M), 100 mm (L)
handlebar
FSA Energy Compact, ACR (Aerodynamic Cable Routing) - diam 31.8 mm / width 400 mm (S - M), 420 mm (L)
grips
fi’zi:k Microtex bar tape
seat post
Carbon Aero - length 357 mm
saddle
fi’zi:k Antares R7, S-alloy rails
