Frame set
frame

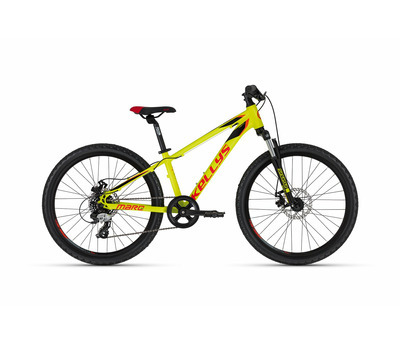

KELLYS Alutec RRC MTB 24 - Race Ready Concept
fork
SR SUNTOUR XCT (24), 50 mm, coil spring
frame size
315 mm
Drive
crankset
PROWHEEL (36T) - length 152 mm
rear derailleur
SHIMANO TX800 (direct mount)
shifters
SHIMANO SL-M310 Rapidfire Plus
speed
7
cassette sprocket
SHIMANO CS-HG200-7 (12-32T)
chain
KMC Z7
b.b.parts
cartridge (126 mm)
pedals
plastic
Brakes
brakes
C-Star CX7 Mechanical Disc
brake levers
APSE
brake rotors
160 mm front / 160 mm rear
Wheels
hubs
KT Disc (32 holes)
rims
KLS Draft Disc 507x19 (32 holes)
spokes
steel black
tyres
MITAS Winner 50-507 (24x1.95)
Cockpit
head parts
semi-integrated
stem
PROMAX - diam 31.8 mm / length 45 mm
handlebar
KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 600 mm
grips
KLS Advancer
seat post
KALLOY - diam 27.2 mm / length 300 mm
saddle
KLS DriveLine Junior
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
