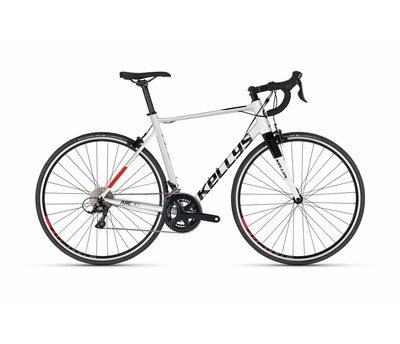

ARC 30
Road bike
799,00 €*
Launch price: 1 199,00 €
* Manufacturer's recommended retail price
-
EAN: 8585053830528
Frame set
frame KELLYS Endurance Concept - Aluminium alloy, tapered HT, internal routing
fork KELLYS Carbon - 1.5 tapered steerer
frame size S / M / L
Drive
crankset SHIMANO Sora R3000 (50x34T) - length 170 mm (S), 175 mm (M - L)
rear derailleur SHIMANO Sora R3000 (direct mount)
front derailleur
SHIMANO Sora R3000 (brazed-on mount)
shifters SHIMANO Sora ST-R3000 Dual Control
speed 18
cassette sprocket SHIMANO CS-HG300-9 (11-32T)
chain KMC X9
b.b.parts SHIMANO BB-RS500
Brakes
brakes TEKTRO
brake levers SHIMANO Sora ST-R3000 Dual Control
Wheels
hubs SHIMANO Claris 2400 (32 holes)
rims KELLYS Spark 622x15 (32 holes / eyelets)
spokes stainless steel black
tyres SCHWALBE Lugano 25-622 (700x25C) K-Guard, Silica
Cockpit
head parts FSA 1.5 semi-integrated
stem KLS Active Road - diam 28.6 mm / bar bore 31.8 mm / 6° / length 90 mm (S), 100 mm (M), 110 mm (L)
handlebar KLS Active Road - diam 31.8 mm / width 400m (S), 420 mm (M), 440 mm (L)
grips KLS bar tape
seat post KLS Active - diam 30.9 mm / length 350 mm (S), 400 mm (M - L)
saddle KLS SlipStream cr-mo rails
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
