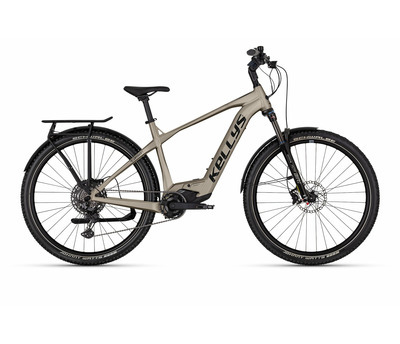

E-CARSON RS40
P INOX 29" 820 Wh
Frame set
frame
KELLYS E-CARSON RS-series - Superlight design, advanced robotic welded Al 6061-T6 / Designed & manufactured in EUROPE / integrated removable battery, 1.5” tapered HT
fork
SR SUNTOUR XCM32 AIR LOR DS (29") Boost, 120 mm, air / Speed Lockout / 15 mm thru axle
frame size
M / L / XL
Drive
motor
PANASONIC GXM, max torque 110 Nm
battery
KELLYS K2 AMXXPRO CARBON 820 Wh - superhigh energy density 236 Wh/kg, weight 3.48 kg, capacity 23 Ah, co-developed by KELLYS-BMZ
switch unit
PANASONIC
computer display
PANASONIC GXM Remote 801 Side Display - Bluetooth®, PANASONIC App conectivity
crankset
MIRANDA Delta (34T) - length 170 mm
rear derailleur
SHIMANO Cues U4000 (direct mount)
shifters
SHIMANO Cues SL-U4000-9R Rapidfire Plus
speed
9
cassette sprocket
SHIMANO Linkglide CS-LG300-9 (11-46T)
chain
SHIMANO Linkglide CN-LG500
pedals
plastic
Brakes
brakes
SHIMANO MT200 Hydraulic Disc
brake levers
SHIMANO BL-MT200
brake rotors
GALFER Fixed Disc Wave® DB03W Center Lock, 180 mm front / 180 mm rear
Wheels
hubs
JOYTECH D041SB-B15 front / D442SB-B12-S4S HG rear, 6-bolts Disc (32 holes)
rims
IBEX C30 Disc 622x30 (32 holes)
spokes
stainless steel black
tyres
SCHWALBE Hybrid Advancer 60-622 (29"x2.35) PunctureGuard, Green Compound
thru axle
SR SUNTOUR 15x110 mm front / 12x181 mm rear
fenders
aluminium alloy
Cockpit
head parts
ACROS 1.8" tapered semi-integrated
stem
ZOOM a-head adjustable - diam 28.6 mm / bar bore 31.8 mm / length 90 mm
handlebar
KALLOY RiseBar - diam 31.8 mm / width 640 mm
grips
KLS Wave LockOn 2Density ergonomic
seat post
KLS Active - diam 30.9 mm / length 400 mm
saddle
SELLE ROYAL Vivo Ergo
front light
LITEMOVE 60 lux
rear light
LITEMOVE
accessories
alloy carrier, chainglider, adjustable kickstand, bell
