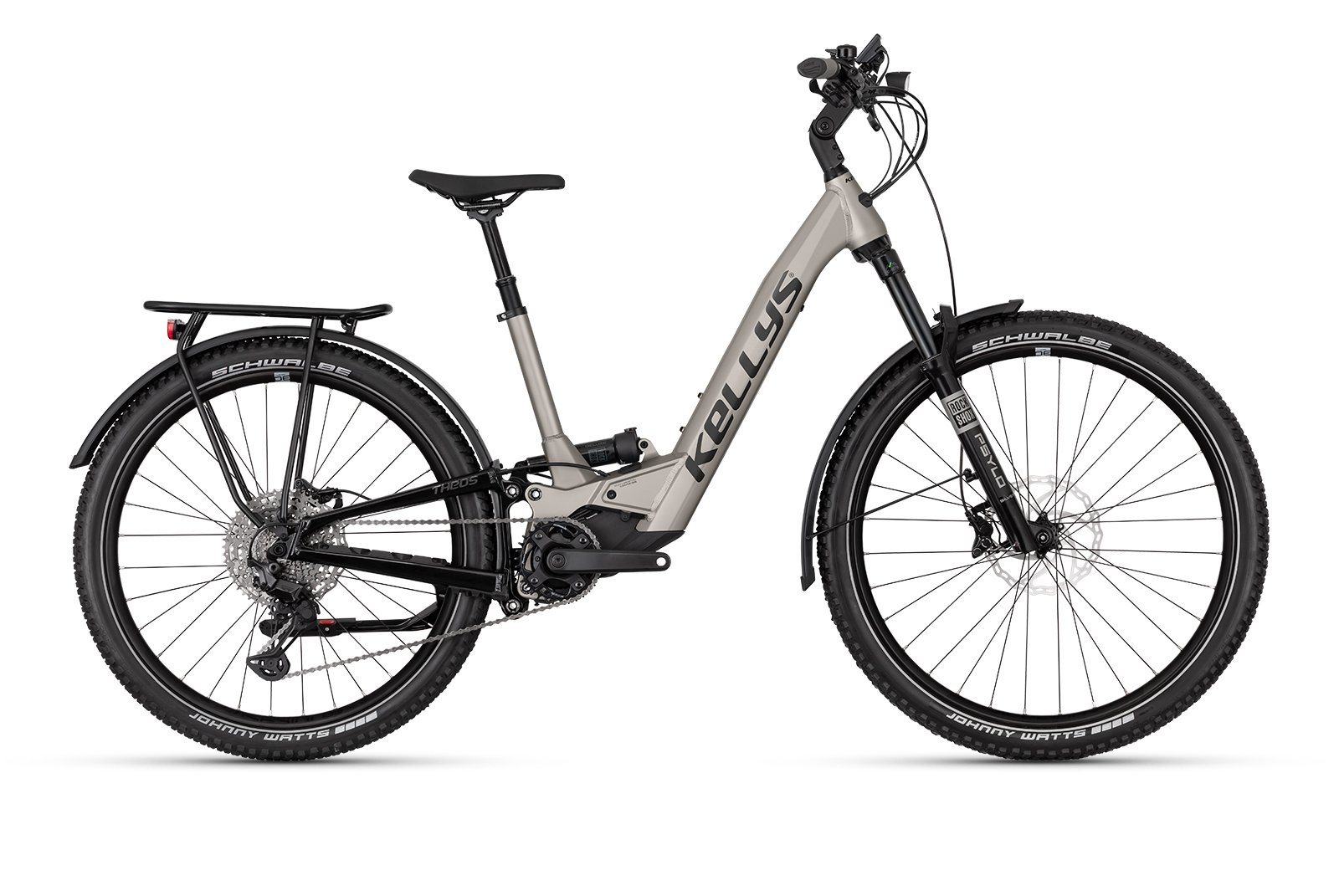

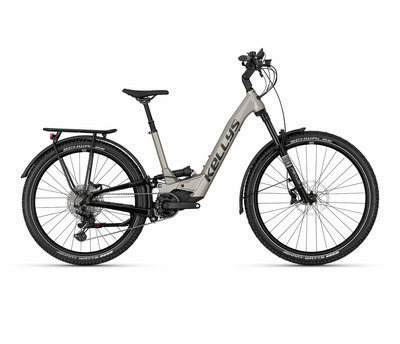

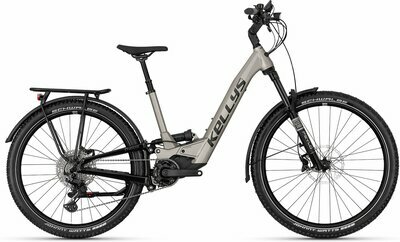

THEOS RSE70
P TITANIUM 29/27.5" 820 Wh
Frame set
frame
KELLYS THEOS RSE-series - Superlight design, advanced robotic welded Al 6061-T6 / Designed & manufactured in EUROPE / Think Link® suspension system, 120 mm rear travel, integrated removable battery, 1.8" tapered HT, post mount 203 mm, mullet 29 / 27.5"+ wheelset, 12x148 mm Boost thru axle
fork
ROCK SHOX Psylo Silver RC (29") Boost, 140 mm, Solo Air / Motion Control / Maxle Stealth 15 mm thru axle
rear shock
ROCK SHOX Deluxe Select, DebonAir+ / R damper (210x55 mm)
frame size
M / L
Drive
motor
PANASONIC GXM AMXXPRO - Compact, High Torque & Low weight drive unit, max torque 120 Nm, weight 2.56 kg
battery
KELLYS K2 AMXXPRO CARBON 820 Wh - superhigh energy density 236 Wh/kg, weight 3.48 kg, capacity 23 Ah, co-developed by KELLYS-BMZ
switch unit
PANASONIC
computer display
PANASONIC GXM Remote 801 Side Display - Bluetooth®, PANASONIC App conectivity
crankset
MIRANDA Delta (34T) - length 170 mm
rear derailleur
SHIMANO Deore XT Linkglide M8130 (direct mount)
shifters
SHIMANO Deore XT Linkglide SL-M8230-IR11 Rapidfire Plus (I-Spec EV)
speed
11
cassette sprocket
SHIMANO Linkglide CS-LG400-11 (11-50T)
chain
SHIMANO Linkglide CN-LG500
pedals
plastic
Brakes
brakes
SHIMANO MT420 Hydraulic Disc 4-piston
brake levers
SHIMANO BL-M4100
brake rotors
GALFER Fixed Disc Wave® DB134W2 Center Lock, 203 mm front / 203 mm rear
Wheels
hubs
SHIMANO TC500-15-B / TC500-HM-B Disc Center Lock (32 holes)
rims
IBEX C30 Disc 622x30 / 584x30 (32 holes)
spokes
stainless steel black
thru axle
ROCK SHOX 15x110 mm front / 12x173 mm rear
fenders
aluminium alloy
rear tyre
SCHWALBE Johny Watts Performance 60-584 (27.5"x2.35) Race Guard, ADDIX, folding
front tyre
SCHWALBE Johny Watts Performance 60-622 (29"x2.35) Race Guard, ADDIX, folding
Cockpit
head parts
ACROS 1.8" tapered semi-integrated
stem
PROMAX a-head adjustable - diam 28.6 mm / bar bore 31.8 mm / length 90 mm
handlebar
KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 760 mm
grips
KLS Wave LockOn 2Density ergonomic
seat post
LIMOTEC D1 Remote Telescopic - diam 30.9 mm / length 488 mm, travel 170 mm
saddle
SELLE ROYAL SRX+
front light
LITEMOVE
rear light
LITEMOVE
accessories
alloy carrier, chainglider, adjustable kickstand, bell
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
