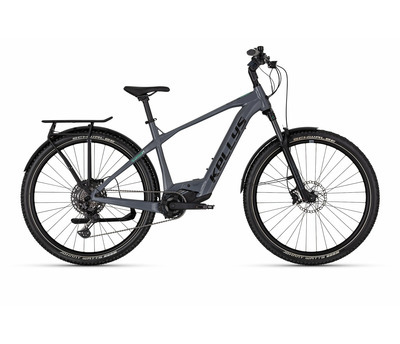

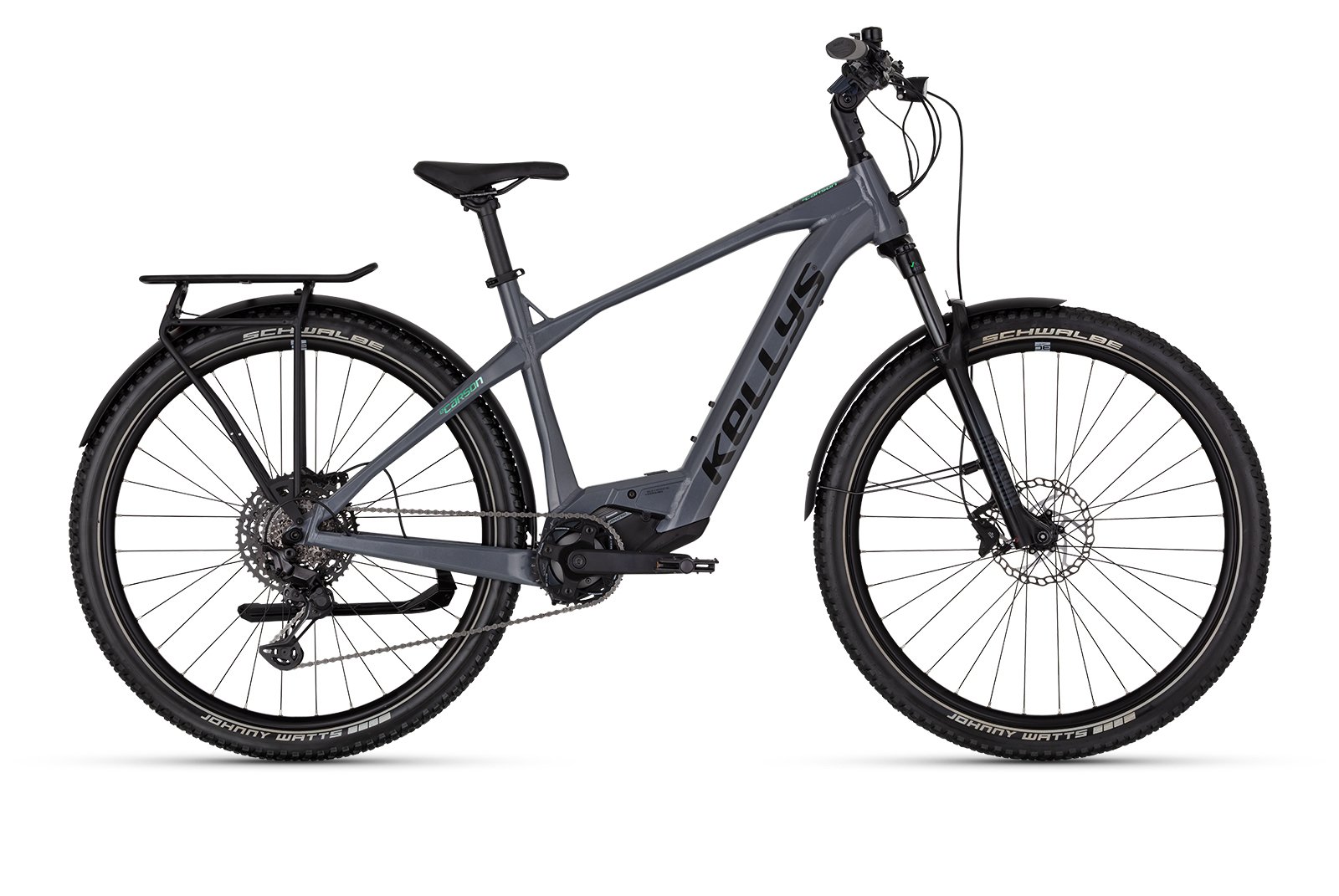

E-CARSON RS70 P GRAPHITE BOREALIS 29" 820 Wh
E-CARSON RS70 P GRAPHITE BOREALIS 29" 820 Wh 4157829

E-CARSON RS70
P GRAPHITE BOREALIS 29" 820 Wh

Frame set

frame frame
KELLYS E-CARSON RS-series - Superlight design, advanced robotic welded Al 6061-T6 / Designed & manufactured in EUROPE / integrated removable battery, 1.5” tapered HT
fork fork
ROCK SHOX Recon Silver RL (29") Boost, 120 mm, Solo Air / Motion Control / Maxle Stealth 15 mm thru axle
frame size frame size
M / L

Drive

motor motor
PANASONIC GXM AMXXPRO - Compact, High Torque & Low weight drive unit, max torque 120 Nm, weight 2.56 kg
battery battery
KELLYS K2 AMXXPRO CARBON 820 Wh - superhigh energy density 236 Wh/kg, weight 3.48 kg, capacity 23 Ah, co-developed by KELLYS-BMZ
switch unit switch unit
PANASONIC
computer display computer display
PANASONIC GXM Remote 801 Side Display - Bluetooth®, PANASONIC App conectivity
crankset crankset
MIRANDA Delta (34T) - length 170 mm
rear derailleur rear derailleur
SHIMANO Deore XT Linkglide M8130 (direct mount)
shifters shifters
SHIMANO Deore XT Linkglide SL-M8230-IR11 Rapidfire Plus (I-Spec EV)
speed speed
11
cassette sprocket cassette sprocket
SHIMANO Linkglide SC-LG400-11 (11-50T)
chain chain
SHIMANO Linkglide CN-LG500
pedals pedals
plastic

Brakes

brakes brakes
SHIMANO MT410 hydraulic disc
brake levers brake levers
SHIMANO BL-M4100
brake rotors brake rotors
GALFER Fixed Disc Wave® DB003W Center Lock, 180 mm front / 180 mm rear

Wheels

hubs hubs
JOYTECH D041SB-B15 front / D442SB-B12-S4S HG rear, 6-bolts Disc (32 holes)
rims rims
IBEX C30 Disc 622x30 (32 holes)
spokes spokes
stainless steel black
tyres tyres
SCHWALBE Hybrid Johny Watts 60-622 (29"x2.35) RaceGuard, Radial, ADDIX Green
thru axle thru axle
ROCK SHOX Maxle Stealth 15x110 mm front / 12x181 mm rear
fenders
aluminium alloy

Cockpit

head parts head parts
ACROS 1.8" tapered semi-integrated
stem stem
PROMAX a-head adjustable - diam 28.6 mm / bar bore 31.8 mm / length 90 mm
handlebar handlebar
KALLOY RiseBar - diam 31.8 mm / width 640 mm
grips grips
KLS Wave LockOn 2Density ergonomic
seat post seat post
KLS Active - diam 30.9 mm / length 400 mm
saddle saddle
SELLE ROYAL Vivo

front light
LITEMOVE 60 lux
rear light
LITEMOVE
accessories
alloy carrier, chainglider, adjustable kickstand, bell
