TYKE 30 PALE AURORA 29"
TYKE 30 PALE AURORA 29" 4158032
TYKE 30 PALE AURORA 29"

TYKE 30
PALE AURORA 29"

Frame set

frame frame
KELLYS Backcountry 29" / Horst-Link four-bar suspension system, 125 mm rear travel, 1.5" tapered HT, internal routing, post mount 180 mm, 12x148 mm Boost thru axle
fork fork
ROCK SHOX Recon Silver RL (29") Boost, 130 mm, Solo Air / Motion Control / Maxle Stealth 15 mm thru axle
rear shock rear shock
ROCK SHOX Deluxe Select, DebonAir+ / R damper (185x47.5 mm)
frame size frame size
M / L

Drive

crankset crankset
PROWHEEL RMZ-MD25S-TT (32T) - length 170 mm (M - L)
rear derailleur rear derailleur
SHIMANO Cues U6000 (direct mount)
shifters shifters
SHIMANO Cues SL-U6000-10R Rapidfire Plus
speed speed
10
cassette sprocket cassette sprocket
SHIMANO Linkglide CS-LG300-10 (11-48T)
chain chain
SHIMANO Linkglide CN-LG500
b.b.parts b.b.parts
PROWHEEL thru axle
pedals pedals
plastic platform

Brakes

brakes brakes
SHIMANO MT200 hydraulic disc
brake levers brake levers
SHIMANO BL-MT200
brake rotors brake rotors
SHIMANO RT10 180 mm front / 180 mm rear

Wheels

hubs hubs
SHIMANO TC500-15-B / TC500-HM-B Disc Center Lock (28 holes)
rims rims
KLS Segador 27 SL Disc 622x27 (28 holes)
spokes spokes
stainless steel black
tyres tyres
SCHWALBE Tough Tom 60-622 (29"x2.35) K-Guard, SBC
thru axle thru axle
ROCK SHOX Maxle Stealth 15x110 mm front / 12x181 mm rear

Cockpit

head parts head parts
1.5" tapered semi-integrated
stem stem
KLS Alm/En 30 - diam 28.6 mm / bar bore 31.8 mm / 5° / length 40 mm (M - L)
handlebar handlebar
KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 760 mm (M - L)
grips grips
KLS Poison One Lockon
seat post seat post
LIMOTEC D1 Remote Telescopic - diam 31.6 mm / length 450 mm, travel 150 mm (M - L)
saddle saddle
KLS Ascend

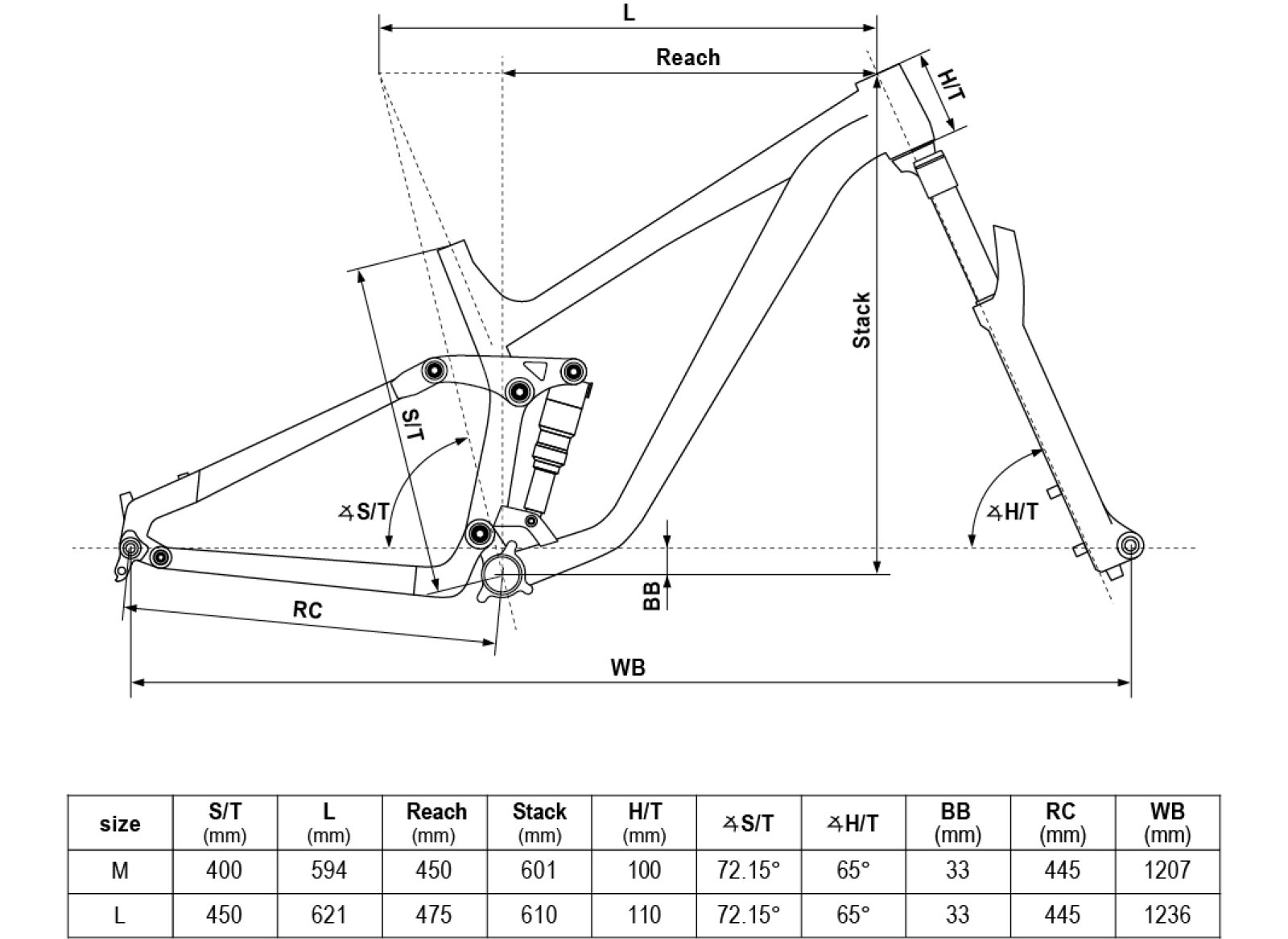

Geometria TYKE 30 PALE AURORA 29"

We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
