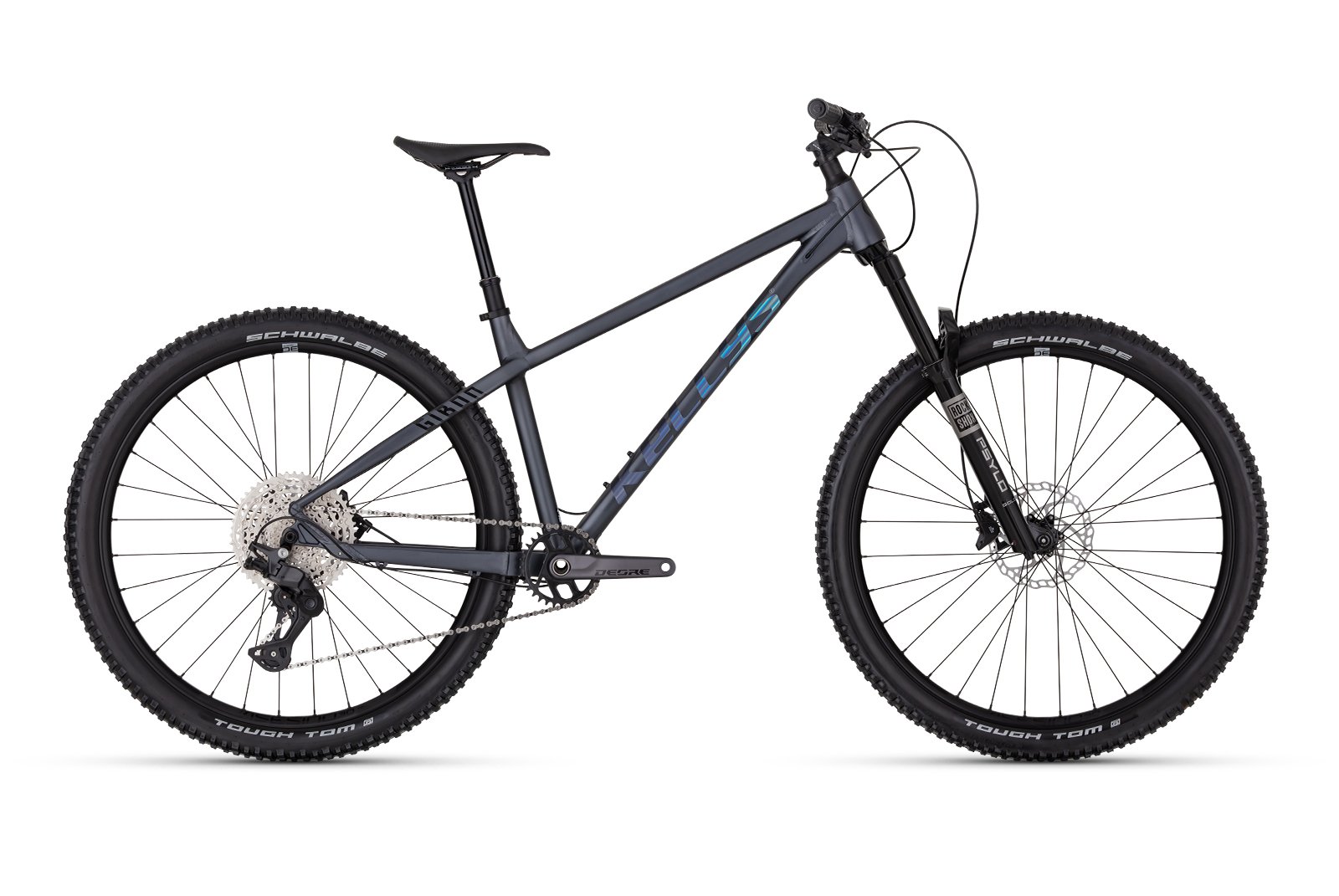

GIBON 50 GRAPHITE IRISED 29"

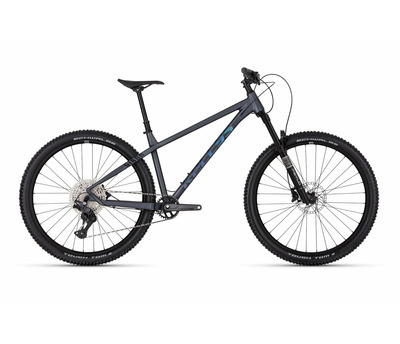

GIBON 50 GRAPHITE IRISED 29" 4158026

GIBON 50
GRAPHITE IRISED 29"

Frame set

frame frame
KELLYS Dynamic Trail 29", 1.5" tapered HT, internal routing, 12x148 mm Boost thru axle
fork fork
ROCK SHOX Psylo Gold RC (29") Boost, 140 mm, DebonAir / Isolator RC damper / Maxle Stealth 15 mm thru axle
frame size frame size
M / L

Drive

crankset crankset
SHIMANO Deore MT6200-1 (32T) - length 170 mm (M - L)
rear derailleur rear derailleur
SHIMANO Deore M7200 (direct mount)
shifters shifters
SHIMANO Deore SL-M6200-R Rapidfire Plus
speed speed
12
cassette sprocket cassette sprocket
SHIMANO CS-M6200-12 (10-51T)
chain chain
KMC X12
b.b.parts b.b.parts
SHIMANO BB-MT501
pedals pedals
plastic platform

Brakes

brakes brakes
SHIMANO MT410 hydraulic disc
brake levers brake levers
SHIMANO BL-M4100
brake rotors brake rotors
GALFER Fixed Disc Wave® DB133W2 Center Lock 180 mm front / 180 mm rear

Wheels

hubs hubs
SHIMANO TC500-15-B / TC500-MS-B Disc Center Lock (32 holes)
rims rims
KLS Asesino 30 Disc 622x30 (32 holes)
spokes spokes
stainless steel black
tyres tyres
SCHWALBE Tough Tom 60-622 (29"x2.35) K-Guard, SBC
thru axle thru axle
ROCK SHOX Maxle Stealth 15x110 mm front / 12x172 mm rear

Cockpit

head parts head parts
1.5" semi-integrated
stem stem
KLS Alm/En 30 - diam 28.6 mm / bar bore 35 mm / length 35 mm (M - L)
handlebar handlebar
KLS Active RiseBar - diam 35 mm / rise 18 mm / width 780 mm (M - L)
grips grips
KLS Poison Lockon
seat post seat post
LIMOTEC D1 Remote Telescopic - diam 30.9 mm / length 450 mm, travel 150 mm (M - L)
saddle saddle
KLS Ascend

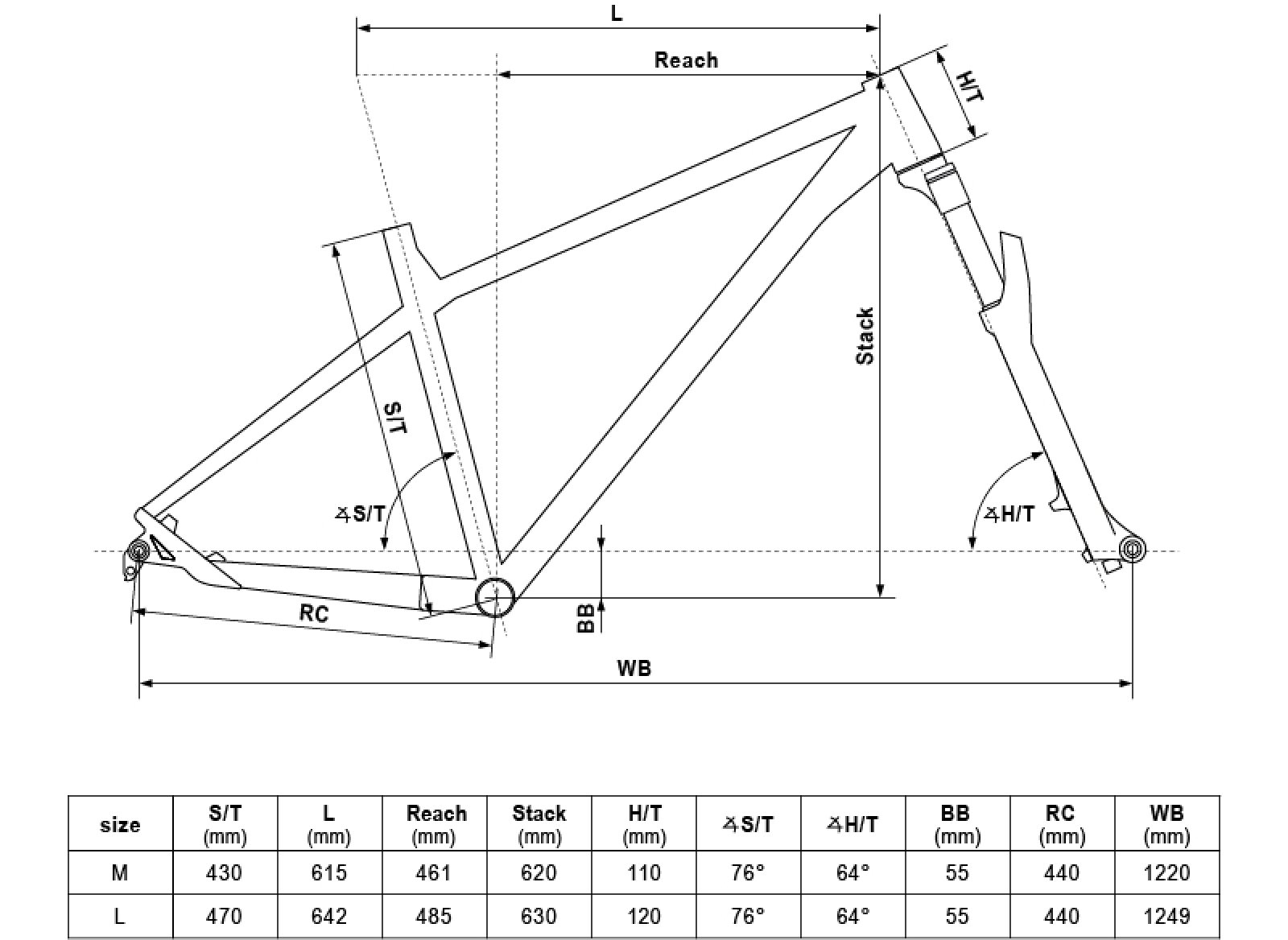

Geometria GIBON 50 GRAPHITE IRISED 29"
