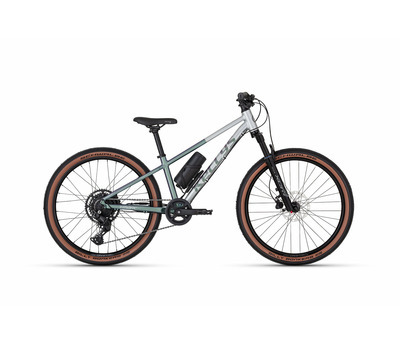

eMARC 90
IRIS CHROME 24" 171 Wh
New
Q2/2027
46 990,00 Kč
-
EAN: 8585053863663
Frame set
frame
KELLYS eMARC series - Aluminium alloy Junior 24", semi-integrated battery
fork
SR SUNTOUR XCR32-JR Air LOR DS (24"), 80 mm, air / Speed Lockout
frame size
300 mm
Drive
motor
MAHLE X30 - rear hub drive unit, 45 Nm, 250 W, weight 1.9 kg / with bottom bracket Torque Sensor - AI-driven torque sensing
battery
MAHLE eX1, 171 Wh / capacity 4.75 Ah
switch unit
MAHLE XS Controller with energy hub
crankset
SAMOX (30T) - length 127 mm
rear derailleur
SHIMANO Cues U4000 (direct mount)
shifters
SHIMANO Cues SL-U4050-9R Rapidfire Plus
speed
9
cassette sprocket
SHIMANO Linkglide CS-LG300-9 (11-46T)
chain
SHIMANO Linkglide CN-LG500
pedals
plastic
Brakes
brakes
TEKTRO hydraulic disc
brake levers
TEKTRO
brake rotors
160 mm front / 140 mm rear
Wheels
hubs
KT 6-bolt Disc front (32 holes) / MAHLE X30 rear
rims
KLS Draft 23 Disc 507x23 (32 holes)
spokes
steel black
tyres
SCHWALBE Billy Bonkers Performance 50-507 (24"x2.0) ADDIX, Bronze Sidewall, folding
Cockpit
head parts
semi-integrated
stem
KLS Alm/En 30 - diam 28.6 mm / bar bore 31.8 mm / length 35 mm
handlebar
KLS Active RiseBar - diam 31.8 mm / rise 20 mm / width 580 mm
grips
KLS 2Density
seat post
KLS Active - diam 27.2 mm / length 270 mm
saddle
SELLE ROYAL Explora Junior
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
