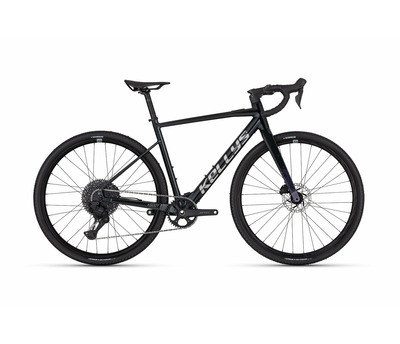

eSOOT 90
JADE BLACK
New
Frame set
frame
KELLYS eSOOT - Superlight, integrated battery, 1.5" tapered HT, aerodynamic internal cable routing, flat mount disc brake / 12x148 mm Boost thru axle
fork
KELLYS Carbon Disc, 1.5" tapered steerer, flat mount disc brake, internal routing / 12 mm thru axle
frame size
S (500 mm) / M (520 mm) / L (540 mm)
Drive
motor
MAHLE X30 - rear hub drive unit, 45 Nm, 250 W, weight 1.9 kg / with bottom bracket Torque Sensor - AI-driven torque sensing
battery
MAHLE iX2, 250 Wh / capacity 6.94 Ah
switch unit
MAHLE iWoc ONE Head Unit - intelligence and connectivity
crankset
SHIMANO GRX RX610-1 (40T) - length 172.5 mm (S - M), 175 mm (L)
rear derailleur
SHIMANO GRX RX717 Di2 (direct mount)
shifters
SHIMANO GRX ST-RX715-R Di2 Dual Control / BL-RS717-L
speed
12
cassette sprocket
SUNRACE CSMZ600-12 (11 - 51T)
chain
SHIMANO CN-M7100
b.b.parts
SHIMANO Press-Fit BB-RS500-PB / with bottom bracket Torque Sensor - AI-driven torque sensing
Brakes
brakes
SHIMANO GRX RX410 Hydraulic Disc
brake levers
SHIMANO GRX ST-RX715-R Di2 Dual Control / BL-RS717-L
brake rotors
GALFER Fixed Disc Wave® DB002W 160 mm front / 160 mm rear
Wheels
hubs
NOVATEC D791 SB Disc (32 holes) / MAHLE X30
rims
KLS Grind 25 SL Disc 622x25 (32 holes)
spokes
stainless steel black
tyres
SCHWALBE G-One Overland Performance 45-622 (28"x1.70) RaceGuard, TLE, ADDIX, folding
thru axle
12x119 mm front
Cockpit
head parts
TOKEN A-BOX, 1.5" AERO integrated cable routing system
stem
PROMAX (aerodynamic internal cable routing compatible with A-BOX head set) - diam 28.6 mm / bar bore 31.8 mm / length 80 mm (S ), 90 mm (M), 100 mm (L)
handlebar
GravelBar, double butted - diam 31.8 mm / width 400 mm (S), 420 mm (M), 440 mm (L)
grips
SELLE ITALIA Smart bar tape
seat post
KLS Active - diam 30.9 mm / length 400 mm (S - L)
saddle
SELLE ITALIA Novus Boost Evo Superflow
weight
14.60 kg (M)
The weight corresponds to the most common model specification in size M. The actual weight of your bike may vary.
